Automatic Rigid Box Machine Description:

HM-ZD6435B Automatic Rigid Box Machine,designed for the regular-size premium box, which  mainly for partial screen glue.It is suitable to make various types of rigid boxes for mass production,such as mobile phone boxes,gift boxes,cosmetic boxes,watch boxes,slanting boxes,etc Size range is bigger ,more beautiful.

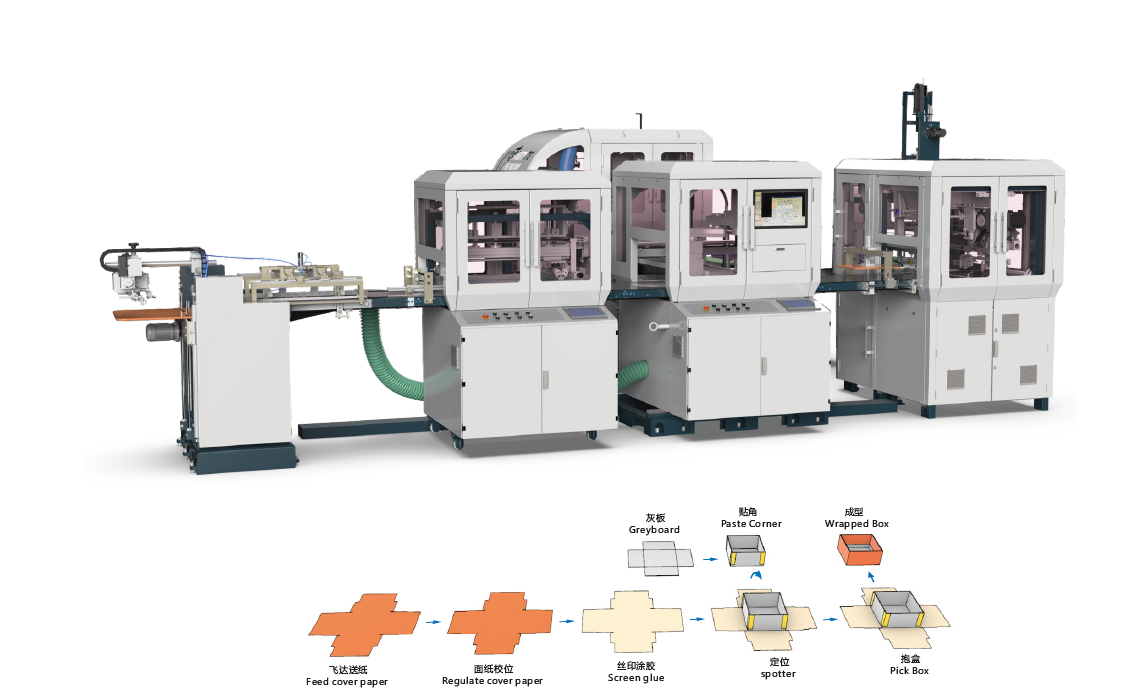

HM-ZD6435B adopts PLC and man-machine control camera tracing system,and can automatically feed cover paper,cover paper correction,screen gluing,feed greyboard ,paste four corners,spot greyboard ,lift box,fold in edges and wrap box.

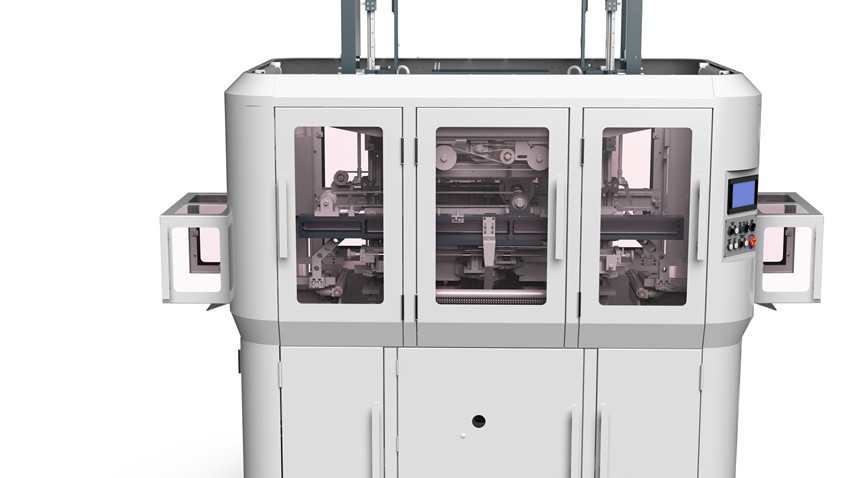

The feeder,the gluer and the conveyor are driven by well known servos which have continuously variable transmisson,and enjoys high accuiacy easy adjusting ,and high efficency The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuiacy to ±0.05mm，and its spotting and adjusting is more faster.The forming unit employs THK linear slider and virtual electronic cam driving system,guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

HM-ZD6435B  Features and function:

1.Suit to all kinds of rigid boxes in mass production.

2.Parameters adopts computer digital seting

3.Auto error stop and display

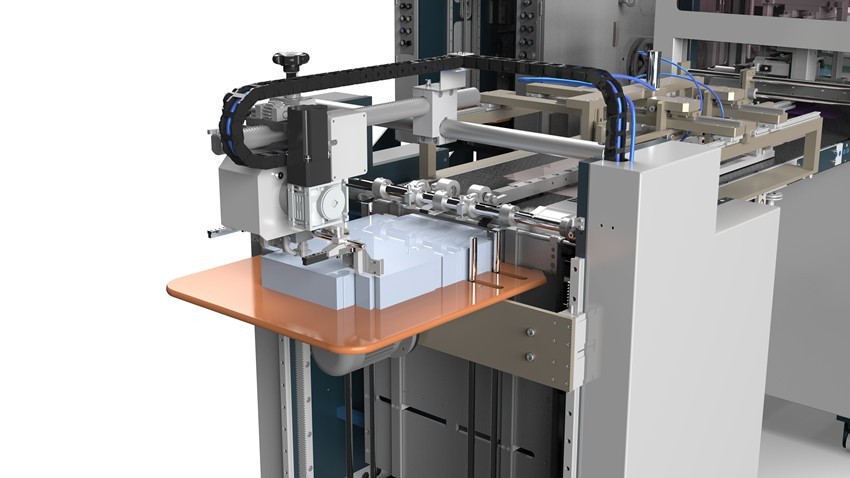

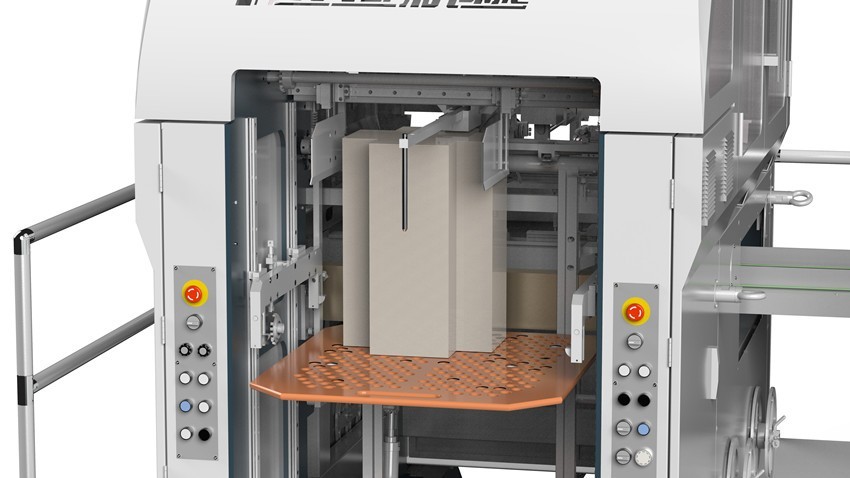

4.Autimatic feed paper and greyboard

5.Autimatic feed paper and draw gauge system

6.Corner pasting part with independent man-machine control and heating system

7.Adopts YASKAWA servo control system

8.Spotter by camera tracing system and SCARA(Selective Compliance Assembly Robot Arm)(spotting accyuacy ±0.05mm)

9.Wrapper can automatic lift and wrap box.

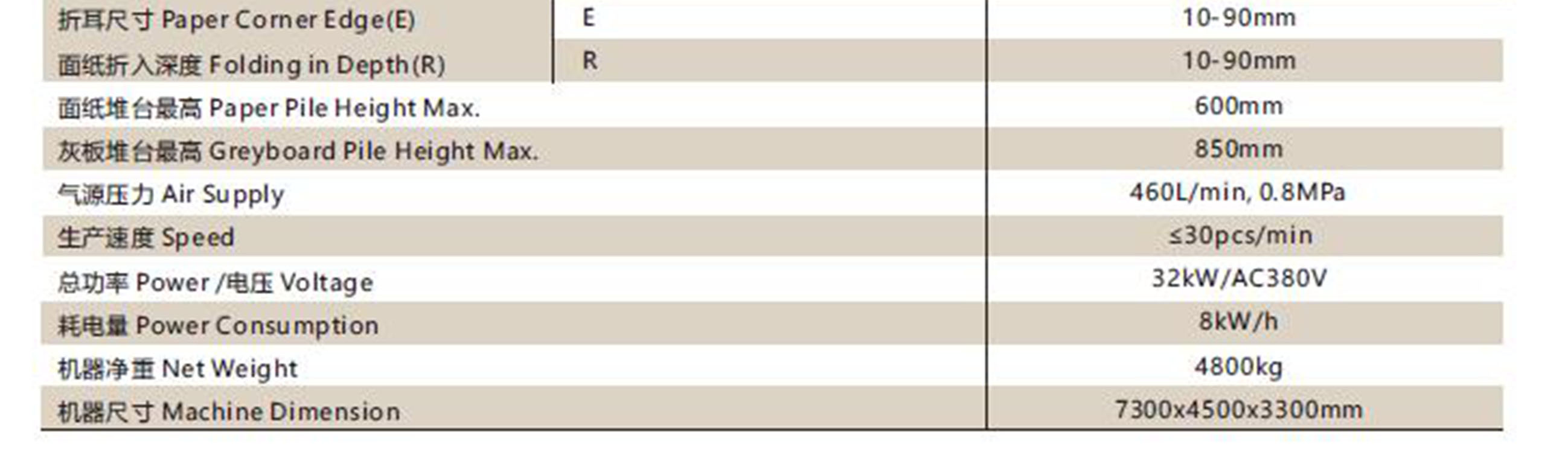

HM-ZD6435B Technical parameters:
